Engineered for VR. Built for racers.

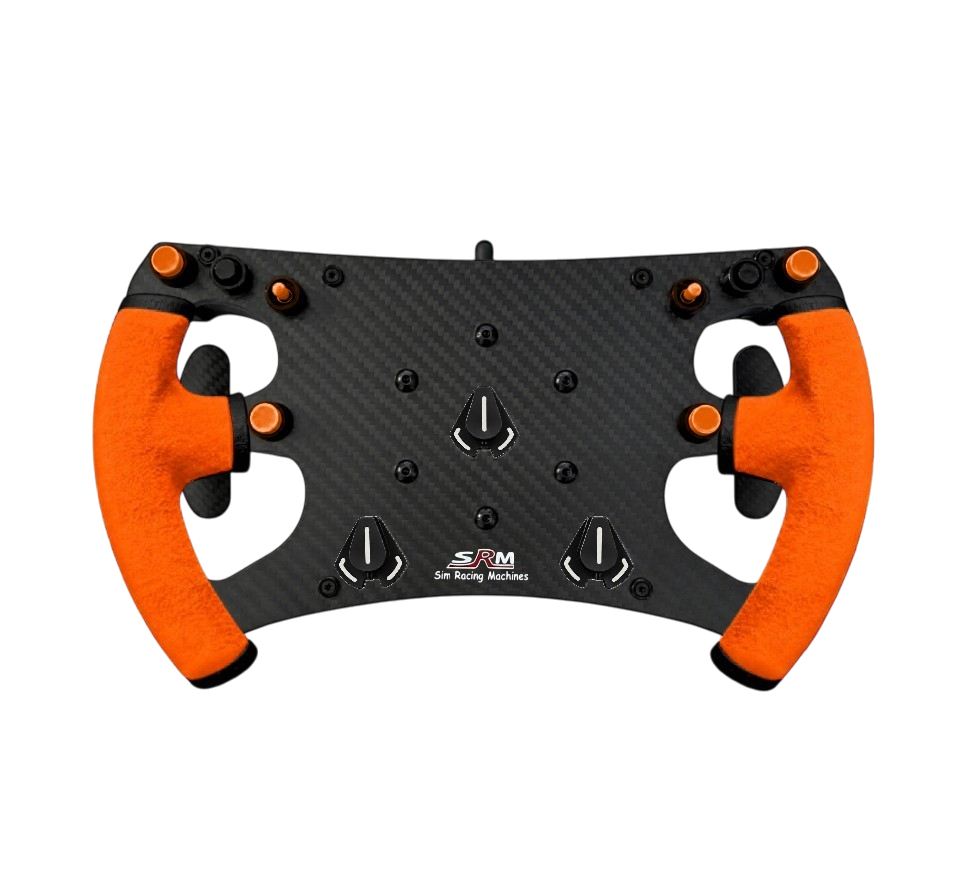

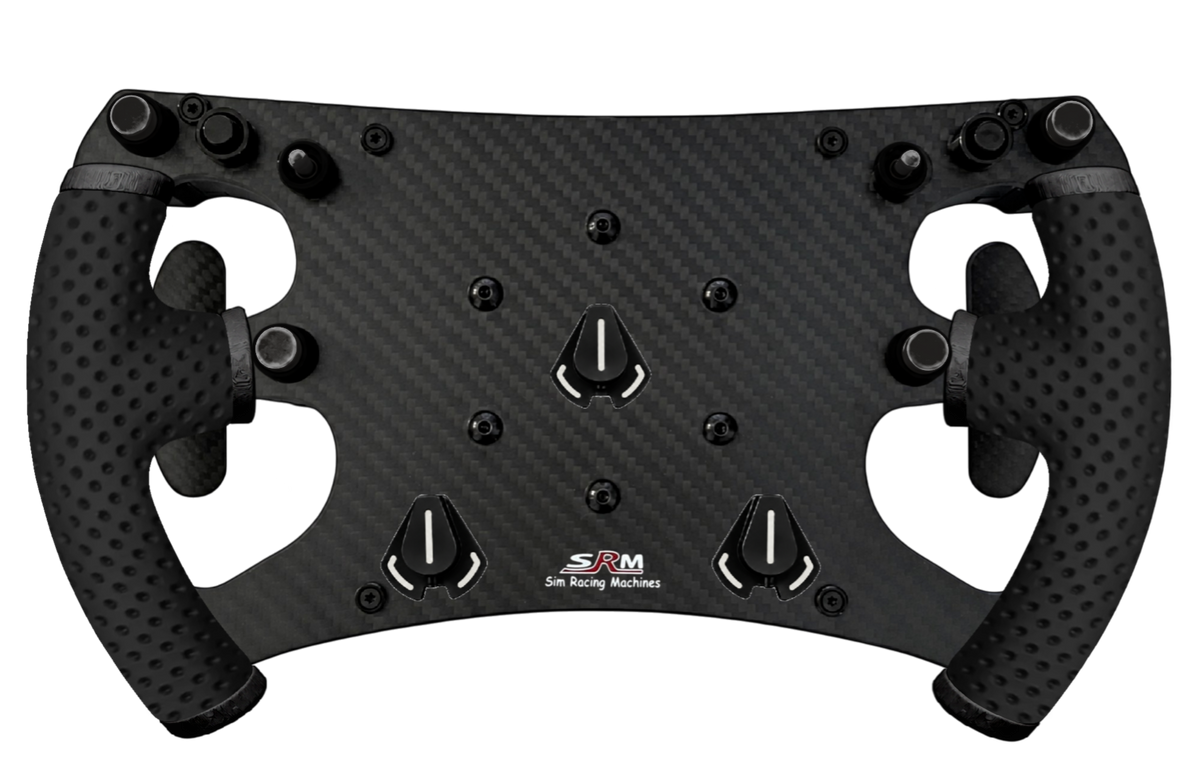

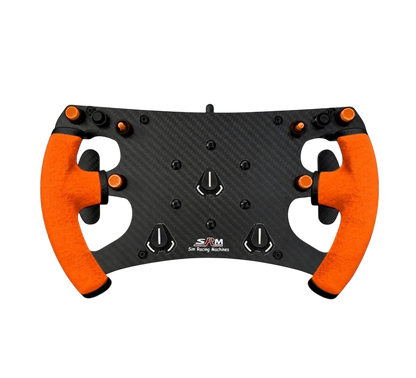

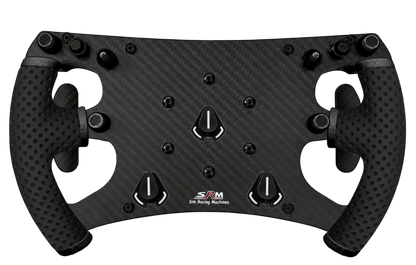

The SRM × Pineapple Grips 290mm wide Sim Racing Wheel is the result of a focused collaboration between two specialist teams — combining SRM’s precision engineering with Pineapple Grips’ ergonomic expertise. Designed from the ground up with VR racing in mind, every control is placed exactly where your hands expect it, allowing instinctive, no‑look operation even in full immersion.
With a rigid carbon‑fibre exoskeleton, a precision‑printed PLA main body, customisable grip options, and high‑grade input components throughout, this wheel delivers the tactile confidence and durability demanded by serious sim racers.
Choose between *Wireless (Simucube 2 & 3) or USB (all PC‑based setups), then customise your build using the configurator.
*Wireless compatibility can also be achieved on any wheelbase if used with a Simucube Link Hub.
VR‑Focused Design
Racing in VR demands controls you can find without thinking. This wheel’s layout, spacing, and tactile feedback were developed specifically for blind operation — from the multi‑position switch to the encoders, toggles, and shifters. Every input is placed for natural reach and muscle memory.
Construction & Materials
Built for strength, rigidity, and long‑term reliability:
- Front Wheel Plate: 5 mm twill‑weave carbon fibre (SRM)
- Rear Wheel Plate: 3 mm twill‑weave carbon fibre (SRM)
- Gear Shifters: Aluminium with 3 mm carbon fibre paddles (SRM)
- Wireless Battery Cover: 3 mm twill‑weave carbon fibre (SRM)
- Grip End Plates: 0.6 mm twill‑weave carbon fibre (Pineapple Grips)
- Top Cover Strip: Twill‑weave carbon fibre (SRM)
- Wheel Body: 3D‑printed matte‑black PLA, 100% infill (Pineapple Grips)
-
Grips: 3D-printed PLA, 100% infill (Pineapple Grips) Customisable with 16 different materials and 23 different colours for the printed grips.
-
Extra Personalisation: Option to add your own text or team logo with our colour UV Printed service.
-
Weight (wireless version): 920g
-
Weight (USB Cable Version): 1030g
Input Controls
Precision components chosen for reliability and feel:
- Multi‑Position Switch: • Wireless: 12 positions • USB: 4 positions
- 1:1 Rotary Encoders (Leo Bodnar)
- 2‑Way Momentary Toggle Switches
- RS Pro Momentary Buttons
- Knitter Momentary Buttons
- Customisable Pineapple Grips
Electronics & Connectivity
- Wireless Controller: Simucube (Wireless version)
- USB Controller: Leo Bodnar (USB version)
- USB Cable: Lumberg DIN → USB A Male (SRM)
- Rear Cover: USB version (SRM)
- Quick Release: Not included
-
USB A (female) to USB C (male) Adaptor: Supplied Free of Charge with the wheel, upon request
Compatibility & Pricing
- Wireless Version — from £249 Compatible with Simucube 2 & 3
- USB Version — from £199 Compatible with all PC‑based sim racing setups
