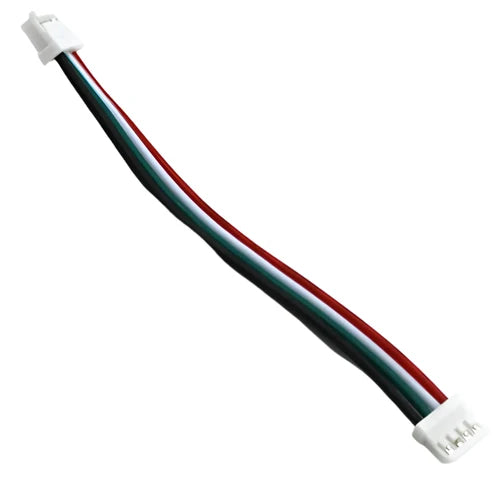

7x Spare: USB to PCB Cable

A replacement cable for the 7x conversion kit PCB

This is the cable that joins the USB PCB to the Conversion kit PCB

Wire colours match USB standard...

• Black = Ground
• Red = 5V
• White = Data -
• Green = Data +

The plugs are:

• Molex CONN RCPT HSG 4POS 1.50MM
• Pico-SPOX 87439
• Part Number 0874390400

The part on the 7x conversion kit is:

• CONN HEADER SMD R/A 4POS 1.5MM
• Pico-SPOX 87438
• 0874380443

The cable is: 70mm long
