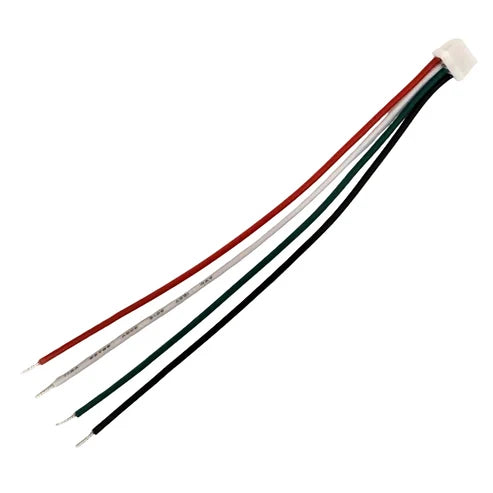

7x Spare: USB to PCB Cable Bare End

A cable that fits the SRM 7x conversion kits and has bare wires on the end.

This is for connecting USB to the 7x PCB. Ideal for use with the Asetek or Simagic QR-A QR.

To use you will need some soldering skills.

Wire colours match USB standard...

• Black = Ground
• Red = 5V
• White = Data -
• Green = Data +

The plug is:

• Molex CONN RCPT HSG 4POS 1.50MM
• Pico-SPOX 87439
• Part Number 0874390400

The part on the 7x conversion kit is:

• CONN HEADER SMD R/A 4POS 1.5MM
• Pico-SPOX 87438
• 0874380443

The cable is: 110mm long
